Wedge Anchor Installation

What Are Wedge Anchors?

Wedge anchors are one of the most effective and efficient fastening solutions for heavy-duty concrete applications. These powerful anchors consist of a wedge anchor bolt, a washer, and a nut. Thanks to their robust holding power and straightforward installation process, wedge anchors are popular for both commercial construction applications and DIY jobs. This guide will help you understand the tools required for wedge anchor installation, along with a step-by-step guide for installing wedge anchors in concrete surfaces.

What Applications Require Wedge Anchors?

Wedge anchors offer several advantages that make them popular for concrete applications. They provide high holding power, ideal for heavy-duty applications. With the right tools, wedge anchors are also relatively easy to install, allowing for an efficient installation process without sacrificing strength or quality. When correctly installed, wedge anchors are long-lasting and provide enduring stability in your projects.

How to Use Wedge Anchors: Tools & Materials You'll Need

Before you install wedge anchors, you'll need a few tools:

• Wedge anchors (ensure they are the correct size and type for your application)
• A hammer drill with the appropriate masonry drill bit
• A wrench or socket set
• A hammer
• Safety gear (safety glasses, hearing protection, & gloves are recommended)

5 Steps for Concrete Wedge Anchor Installation

Step 1: Mark Your Wedge Anchor Installation Locations

Identify and mark the locations where you will be installing the wedge anchors. Ensure the concrete surface where you intend to install the wedge anchors is safe and can support the objects you plan to fasten.

Step 2: Select the Correct Drill Bit Size for Your Hammer Drill

Make sure you've selected the proper hammer drill and masonry bit for your wedge anchor. The bit should be the same diameter as the wedge anchor being installed.

Step 3: Drill the Holes for the Wedge Anchors

Using the hammer drill and bit, drill holes into the concrete at marked locations. Make sure the depth of the hole is about a 1/2" deeper than the length of the wedge anchor you're using. After drilling, use a vacuum or brush to remove dust and debris from the holes.

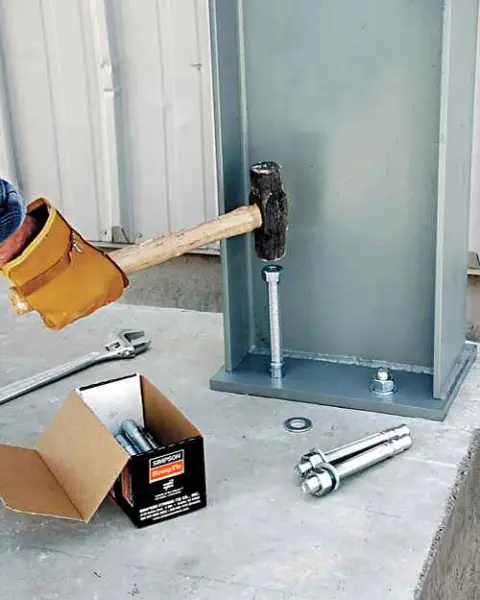

Step 4: Insert & Set the Wedge Anchor with a Hammer

Insert the wedge anchor into the drilled hole. Tap it lightly with a hammer to set it firmly into the hole. Wedge anchors feature a bullnose on the top of the bolt so the threads are not damaged while you hammer the wedge anchor into the hole.

Step 5: Tighten the Nut

Thread the nut and washer onto the exposed threaded end of the wedge anchor. Use a wrench or socket set to tighten the nut until it's snug. Be careful not to over-tighten, as this could damage the anchor or the concrete (check the manufacturer's manual for exact torque measurements).


Frequently Asked Questions About Wedge Anchor Installation

1. What is a wedge anchor?

A wedge anchor is a heavy-duty mechanical fastener designed for secure anchoring into concrete. It consists of a threaded anchor bolt with an expansion clip, along with a washer and nut that activate the expansion mechanism when tightened.

2. Where are wedge anchors typically used?

Wedge anchors are commonly used in commercial and industrial applications where strong, permanent fastening into concrete is required, such as structural supports, equipment mounting, railings, and machinery bases.

3. What tools are needed to install wedge anchors?

Installing wedge anchors typically requires a hammer drill with the correct size masonry bit, a hammer, a wrench or socket set, and appropriate safety equipment such as gloves and eye protection.

4. How deep should I drill the hole for a wedge anchor?

The hole should be drilled approximately 1/2 inch deeper than the length of the wedge anchor being installed. This ensures the anchor can be fully seated and properly expanded within the concrete.

5. Do I need to clean the drilled hole before inserting the wedge anchor?

Yes. Dust and debris left in the hole can prevent proper expansion and reduce holding strength. The hole should be thoroughly cleaned before inserting the anchor.

6. How do I set the wedge anchor once it’s in the hole?

Insert the wedge anchor into the drilled hole and tap it lightly with a hammer until it is fully seated. Tighten the nut to the recommended torque to expand the anchor and secure it in place.

7. Can wedge anchors be over-tightened?

Yes. Over-tightening a wedge anchor can damage the anchor or the surrounding concrete. Always follow the manufacturer’s torque specifications to ensure proper installation and performance.
